XM122 IoT Module

Name: XM122 IoT Module
SKU: 291246
Price: 29.10 EUR
Availability: InStock

€29.10

Add to Compare

Availability

Deliverable in short time

More information about samples availability can be found here: Availability

Low Power XM122 IoT Module from Acconeer with MCU.

Product Code: 291246
Weight: 0 g
Manufacturer: ACCONEER

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Description

Detailed information

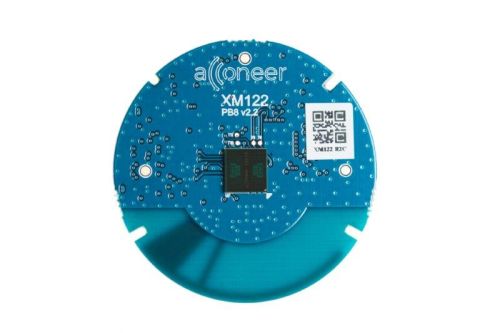

The XM122 IoT Module from Acconeer is a low power connected radar module with optimized circular form factor with a diameter of 33mm. This IoT module integrates the A111 Pulsed Coherent Radar and the Nordic nRF52840 System on Chip that supports a 32-bit 64 MHz ARM(R) Cortex-M4 CPU with 256 KB SRAM and 1 MB Flash including support for Bluetooth 5, Bluetooth mesh, Thread, Zigbee, 802.15.4 and ANT. The XM122 IoT module features integrated 2.4 GHz antenna and support for external 2.4 GHz antenna.

Your technical contact person

Johannes Kornfehl +43 186 305-149 E-MAIL

For general questions

CODICO GmbH +43 1 86305-0 E-Mail

Manufacturer / Brand

Manufacturer: ACCONEER

Technical Product Information

XM122 Datasheet (pdf , 1.6 MB )
