XC8112AA01ER-G
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
2ch 500mA Load switch IC with ideal diode function
Product Code:
326550
Weight: 0 g
Manufacturer: TOREX
Weight: 0 g
Manufacturer: TOREX
Detailed information
2ch Load switch IC with ideal diode function
Input Voltage Range 1.5V ~ 6.0V
Output Current 2ch x 500mA (VIN > 1.7V)
Stand-by Current 0.65µA/ch
Quiescent Current 3.6µA/ch
Reverse Bias Current 0.8µA/ch
Forward Voltage 20mV
Over current limit XC8112 : 850mA
Ideal diode function
Reverse Protection
Inrush current prevention
Over current limit
Thermal shutdown function
-40°C ~ 105°C

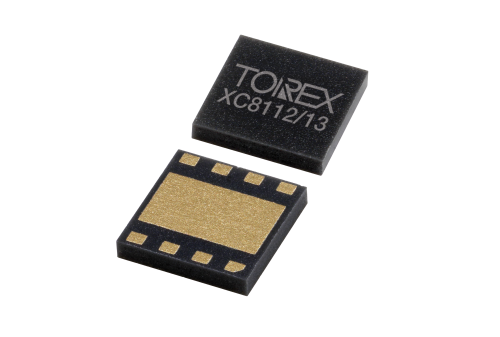

Package USP-8B06 (2.0 x 2.0 x 0.33mm)
Input Voltage Range 1.5V ~ 6.0V
Output Current 2ch x 500mA (VIN > 1.7V)
Stand-by Current 0.65µA/ch
Quiescent Current 3.6µA/ch
Reverse Bias Current 0.8µA/ch
Forward Voltage 20mV
Over current limit XC8112 : 850mA
Ideal diode function
Reverse Protection
Inrush current prevention
Over current limit
Thermal shutdown function
-40°C ~ 105°C
Package USP-8B06 (2.0 x 2.0 x 0.33mm)
