WLE7002E25D-I
€119.70
Availability
Immediately deliverable
More information about samples availability can be found here: Availability

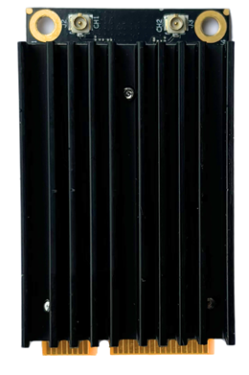

WiFi 7 miniPCIe Module
Ind. Temp.:-40°C to +85°C
MU MIMO 2x2, DBS, 2.4 GHz & 5GHz
Based on QCN-9274-1-MSP264-TR-01-0-01 from Qualcomm
Ind. Temp.:-40°C to +85°C
MU MIMO 2x2, DBS, 2.4 GHz & 5GHz
Based on QCN-9274-1-MSP264-TR-01-0-01 from Qualcomm
Product Code:
323507
Weight: 0 g
Manufacturer: COMPEX
Weight: 0 g
Manufacturer: COMPEX
Detailed information
Interface: PCIe 3.0
Linux Support: ath12k
Mainline Kernel from: 5.4.213 upward
WLAN Standard: WiFi 7
Band: 2.4GHz & 5GHz
MIMO: MU 2x2
Monitor Mode: yes
Power (Per Chain): 2.4GHz@20dBm, 5GHz@20dBm
Clients: 512
Antenna Connector: 2 x U.FL
Power Supply: 3.3V
Temperature Range: -40°C to +85°C
Dimension (mm): 30 x 50.8 x 13
Linux Support: ath12k
Mainline Kernel from: 5.4.213 upward
WLAN Standard: WiFi 7
Band: 2.4GHz & 5GHz
MIMO: MU 2x2
Monitor Mode: yes
Power (Per Chain): 2.4GHz@20dBm, 5GHz@20dBm
Clients: 512
Antenna Connector: 2 x U.FL
Power Supply: 3.3V
Temperature Range: -40°C to +85°C
Dimension (mm): 30 x 50.8 x 13
