WHITE-BEET-PI 1.1 (EV) Module with Embedded ISO15118 Sw Stac
€169.00
Availability
Immediately deliverable
More information about samples availability can be found here: Availability
ISO 15118 HomePlug Green Phy PLC System on Module, STM32 Controller, configured for the EV onboard side (PEV), Software Option: Embedded ISO15
Product Code:
308178
Weight: 10 g
Manufacturer: 8DEVICES
Weight: 10 g
Manufacturer: 8DEVICES

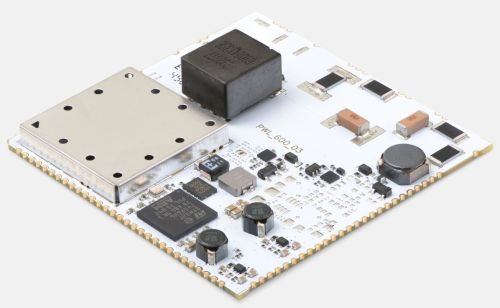

![main product photo](https://www.codico.com/media/catalog/product/cache/c59ee43e27a3fd6035149ee08efef60b/8/D/8Devices_WHITE-BEET-P-2-cut-small_cnk_3.png)
Detailed information
ISO/IEC15118 / DIN 70121 / SAE J2847/2 HomePlug Green Phy PLC Module, with STM32 Controller, configured for eMobility applications on the electro vehicle side (PEV).
- Software Option: ISO15118 V2G/PnC/BPT Sw Stack
- based on Qualcomm QCA7005 chip
- 50 x 50mm SMD package
- extended industrial temperature rage (-40°C up to 105° C)
- SPI- / Ethernet- / USB- / CAN- / UART- Interface
- IEC 61851-1 / SAE J1772 PWM generation and detection
- very low noise floor implementation
- Optimized PLC line coupling for maximum SNR
- TCXO oscillator
Please be aware that for new projects the purchase of a WHITE-BEET-STARTER-KIT is mandatory!
https://www.codico.com/en/white-beet-starter-kit-pi-1-1-pev
- Software Option: ISO15118 V2G/PnC/BPT Sw Stack
- based on Qualcomm QCA7005 chip
- 50 x 50mm SMD package
- extended industrial temperature rage (-40°C up to 105° C)
- SPI- / Ethernet- / USB- / CAN- / UART- Interface
- IEC 61851-1 / SAE J1772 PWM generation and detection
- very low noise floor implementation
- Optimized PLC line coupling for maximum SNR
- TCXO oscillator
Please be aware that for new projects the purchase of a WHITE-BEET-STARTER-KIT is mandatory!
https://www.codico.com/en/white-beet-starter-kit-pi-1-1-pev
