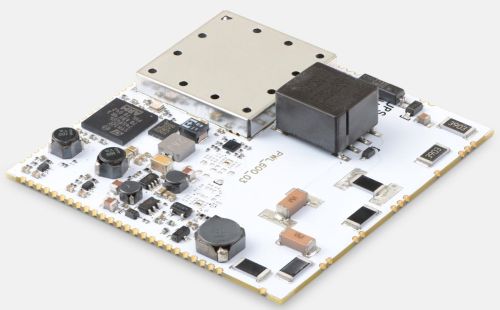

WHITE-BEET-EI 1.1 (EVSE) Module with ISO 15118 Stack +PWM
€169.00
Availability
Immediately deliverable
More information about samples availability can be found here: Availability
ISO 15118 SoM with HomePlug Green Phy PLC, STM32 Controller, configured for the EVSE-side, Software Option: Embedded ISO15118
Product Code:
308175
Weight: 10 g
Manufacturer: 8DEVICES
Weight: 10 g
Manufacturer: 8DEVICES
Detailed information
ISO/IEC15118 / DIN 70121 / SAE J2847/2 HomePlug Green Phy PLC Module, with STM32 Controller, configured for eMobility applications on the Charging Station side (EVSE).
- Software Option: ISO15118 V2G/PnC/BPT Sw Stack
- based on Qualcomm QCA7005 chip
- 50 x 50mm SMD package
- extended industrial temperature rage (-40°C up to 105° C)
- SPI- / Ethernet- / USB- / CAN- / UART- Interface
- IEC 61851-1 / SAE J1772 PWM generation and detection
- very low noise floor implementation
- Optimized PLC line coupling for maximum SNR
- TCXO oscillator
Please be aware that for new projects the purchase of a WHITE-BEET-STARTER-KIT is mandatory!
https://www.codico.com/en/white-beet-starter-kit-ei-1-1-evse
- Software Option: ISO15118 V2G/PnC/BPT Sw Stack
- based on Qualcomm QCA7005 chip
- 50 x 50mm SMD package
- extended industrial temperature rage (-40°C up to 105° C)
- SPI- / Ethernet- / USB- / CAN- / UART- Interface
- IEC 61851-1 / SAE J1772 PWM generation and detection
- very low noise floor implementation
- Optimized PLC line coupling for maximum SNR
- TCXO oscillator
Please be aware that for new projects the purchase of a WHITE-BEET-STARTER-KIT is mandatory!
https://www.codico.com/en/white-beet-starter-kit-ei-1-1-evse
