DC/DC IC Modules
The Next Evolutionary Step in DC/DC Converter ICs
By raising the switching frequencies with DC/DC converter ICs in the MHz range, the coils needed are becoming steadily smaller; so small, in fact, that they can now already be integrated into the smallest of modules. The advantage is obvious: DC/DC IC modules are hardly any larger than the IC itself, but they already provide an adapted integrated coil with an optimum layout connection. Their use is always recommended when a design needs to be put into effect rapidly with only a little PCB space available. CODICO offers DC/DC IC modules for both commercial and industrial use, as well as for the automotive sector.
Samples Contacts News
Manufacturers & Contacts
MPS
Monolithic Power Systems, Inc. (MPS) is amongst the globally leading suppliers in the power-management area. The broad portfolio contains eg DC/DC-converters and -modules, PMICs, battery-management-ICs, current-sensors, AC/DC-converter-ICs, motordrivers as well as angle-sensors and, newly added, even inductors for the DC/DC-converters. Target markets are mainly industrial, automotive, telecom-infrastructure, cloud-computing and consumer-applications.
Find here an overview of MPS DC DC Converter.
Infos Samples
TOREX
TOREX Semiconductor was founded in 1995 as a semiconductor company. The company is a leading supplier of special CMOS power management ICs for battery-based and energy-efficient applications. Especially through this analogue CMOS technology, DC/DC converters and LDO voltage regulators are the core areas of the product range. These are complemented by Voltage Supervisors, Battery Charger IC, Load Switches, Power MOSFETs & Schottky Barrier Diodes. TOREX and CODICO have been working together since 2005.
Infos Samples
-

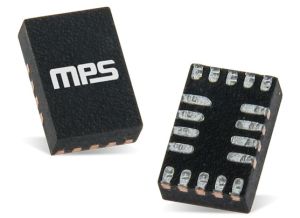

![MPS-MPM3822C]()
DC/DC IC Modules MPM3822CGRH-ZInput voltage: 2,7 - 6V
Input Voltage min: 2,75V
Input Voltage max: 6,0V
Output Current: 2000mA
Free Sample
-
![MPS_MPM3804]()
DC/DC IC Modules MPM3804Input voltage: 2,3 - 5,5V
Input Voltage min: 2,3V
Input Voltage max: 5,5V
Output Current: 600mA
Free Sample
-

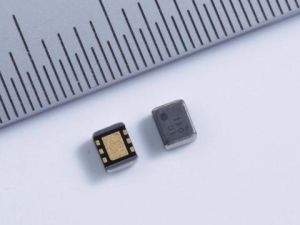

![torex_xcl109_xcl110-fig1]()
DC/DC IC Modules XCL110B333KR-GInput Voltage min: 0,65 (Start 0,9)V
Input Voltage max: 5,5V
Output Voltage: 3,3V
Output Current: 380mA
Free Sample
