Hybrid Capacitors
A Combination of Liquid Electrolyte and Polymer
Aluminum electrolytic hybrid capacitors achieve improved electrical characteristics at compact dimensions, due to the combination of liquid electrolyte and polymer. Thus, they provide the advantages of e-caps (e.g. a higher rated voltage) and those of polymer caps (e.g. high ripple current capability/extremely low ESR) in one product.
Hybrid capacitors are the focus product of several manufacturers. More and more applications, especially in the automotive industry, are realized with such capacitors due to the outstanding features and advantages of this technology. Thus those products are steadily further developed and the parameters continuously improved. Our suppliers partly are looking back on many years of experience in developing this technology.
Samples Contacts NewsAdvantages Compared to Al-Electrolytic Caps
- High ripple current capability in compact case sizes
- Low and over the entire temperature range stable ESR
- Long life time
Advantages Compared to Pure Polymer Caps
- Higher voltage/capacitance values
- A lower leakage current
- A general AEC-Q200 certification
- In case of a failure, they don't generate a short circuit
With our manufacturers PANASONIC, RUBYCON and SUN the product portfolio of CODICO provides a wide selection of hybrid capacitors with different specifications. In case of any questions please contact CODICO's product manager!
Manufacturers & Contacts
PANASONIC
PANASONIC is a big Japanese manufacturer with different business areas like automotive with multi-media products, Manufacturing with electronic components mounting systems or industrial robots and finally the Industrial Business Group with electronic components. CODICO's main focus is on polymer and hybrid capacitors, metal alloy inductors and precision and measurement resistors.
Infos Samples
RUBYCON
RUBYCON is one of the worldwide leading Japanese manufacturers of aluminium electrolytic capacitors. The company is market leader in long life e-caps and very strong in high performance e-caps with high ripple current/low impedance and continuous miniaturization.
Infos Samples
SUNCON
SUN is a Japanese manufacturer of high-quality aluminum electrolytic and hybrid capacitors with more than 60 years of experience in development and production. In 2000, the company introduced the world's first polymer hybrid electrolytic capacitor to the market, which offers major advantages over conventional electrolytic capacitors.
Infos Samples
YAGEO-KEMET
YAGEO-KEMET is one of the leading manufacturers of tantalum, polymer and film capacitors, but also offers special leakage current sensors for industry and automotive charging technology. The product portfolio additionally covers ceramic, aluminum electrolytic and double layer capacitors as well as inductors. The main focus of CODICO is on the film capacitors and leakage current sensors.
Infos Samples
-
![25PZF330M10x9]()
Hybrid Capacitors 25PZF330M10x9Rated Voltage: 25Vdc
Capacitance: 330µF
Rated Ripple Current @100kHz: 2000mA rms
Impedance/ESR: 0,02Ω
Free Sample
-
![image_260]()

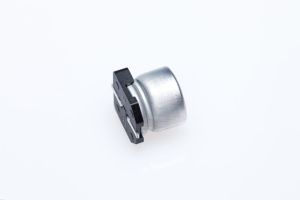

Hybrid Capacitors 35PEV47M6.3x6.1Rated Voltage: 35Vdc
Capacitance: 47µF
Rated Ripple Current @100kHz: 1300mA rms
Impedance/ESR: 0,06Ω
Free Sample
-
![image_214]()
Hybrid Capacitors 63HVPX82MT+PRated Voltage: 63Vdc
Capacitance: 82µF
Rated Ripple Current @100kHz: 2600mA rms
Impedance/ESR: 0,03Ω
Free Sample
-
![image_603]()
Hybrid Capacitors EEHZS1J101PRated Voltage: 63Vdc
Capacitance: 100µF
Rated Ripple Current @100kHz: 2100mA rms
Impedance/ESR: 0,014Ω
Free Sample
-
![image_211]()
Hybrid Capacitors 35HVPC390M+PRated Voltage: 35Vdc
Capacitance: 390µF
Rated Ripple Current @100kHz: 3000mA rms
Impedance/ESR: 0,02Ω
Free Sample
-
![image_177]()
Hybrid Capacitors EEHZS1E561PRated Voltage: 25Vdc
Capacitance: 560µF
Rated Ripple Current @100kHz: 2900mA rms
Impedance/ESR: 0,011Ω
Free Sample
-
![image_178]()
Hybrid Capacitors EEHZS1V471PRated Voltage: 35Vdc
Capacitance: 470µF
Rated Ripple Current @100kHz: 2900mA rms
Impedance/ESR: 0,011Ω
Free Sample
-
![image_179]()
Hybrid Capacitors EEHZS1H221PRated Voltage: 50Vdc
Capacitance: 220µF
Rated Ripple Current @100kHz: 2600mA rms
Impedance/ESR: 0,013Ω
Free Sample
-
![image_180]()
Hybrid Capacitors EEHZS1J151PRated Voltage: 63Vdc
Capacitance: 150µF
Rated Ripple Current @100kHz: 2400mA rms
Impedance/ESR: 0,015Ω
Free Sample
-
![image_120]()
Hybrid Capacitors EEHZC1J820PRated Voltage: 63Vdc
Capacitance: 82µF
Rated Ripple Current @100kHz: 1400mA rms
Impedance/ESR: 0,03Ω
Free Sample
-
![image_181]()
Hybrid Capacitors 25HVPY330M+PRated Voltage: 25Vdc
Capacitance: 330µF
Rated Ripple Current @100kHz: 4000mA rms
Impedance/ESR: 0,018Ω
Free Sample
-
![image_191]()
Hybrid Capacitors 25HVPY470M+PRated Voltage: 25Vdc
Capacitance: 470µF
Rated Ripple Current @100kHz: 4700mA rms
Impedance/ESR: 0,014Ω
Free Sample
