MCS1806GS-3-50 (5 pcs. Sample-Box)
Free Sample
Availability
Immediately deliverable
More information about samples availability can be found here: Availability

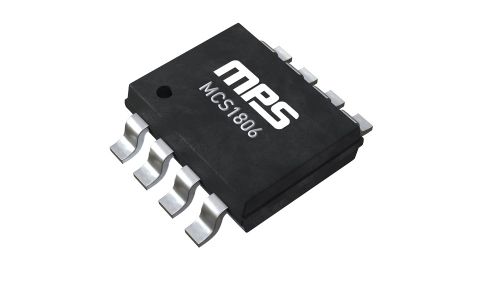

Hall-effect based current sensor
+/-50A
+/-50A
Product Code:
316134
Weight: 0 g
Manufacturer: MPS
Weight: 0 g
Manufacturer: MPS
Detailed information
Sample Box 5 pcs.
Current Sensorfor +/- 50A
3.3V Single Supply
Immune to External Magnetic Fields by Differential Sensing
3kVRMS Minimum Isolation Voltage
500VRMS Maximum Working Voltage
+/- 2,5% Accuracy
Operating Temperature: -40°C to +125°C
SOIC-8 Package
Current Sensorfor +/- 50A
3.3V Single Supply
Immune to External Magnetic Fields by Differential Sensing
3kVRMS Minimum Isolation Voltage
500VRMS Maximum Working Voltage
+/- 2,5% Accuracy
Operating Temperature: -40°C to +125°C
SOIC-8 Package
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: MPS
Technical Product Information
| VCC | 3,3V |
|---|---|
| Internal Conductor Resistance | 0,9mΩ |
| Bandwidth | 100kHz |
| Isolation | 3kV |
| Housing | SOIC-8 |
| OCD Output | No |
| Current Range | ±50A |
| Accuracy | 2,5±% |
| Temperature Range | -40°C to +125°C |
