EXL1V0503-R15-R
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
High Current Molded Inductor EXL1V0503-R15-R
Product Code:
302294
Weight: 2.2 g
Manufacturer: EATON ELECTRONICS
Weight: 2.2 g
Manufacturer: EATON ELECTRONICS

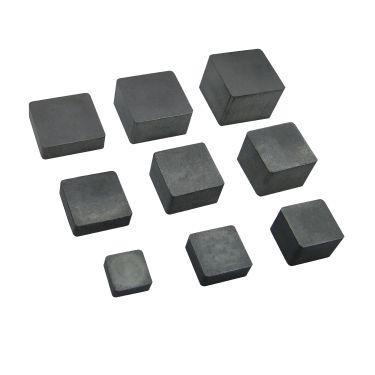

![main product photo](https://www.codico.com/media/catalog/product/cache/c59ee43e27a3fd6035149ee08efef60b/E/X/EXL_FAMILY_23.jpg)
Detailed information
Iron Powder Inductor
High Current Carrying Capability
Soft Saturation Characteristics
Magnetically Shielded
Low DCR, High Efficiency
High Current Carrying Capability
Soft Saturation Characteristics
Magnetically Shielded
Low DCR, High Efficiency
Your technical contact person
![](https://content.codico.com/fileadmin/_processed_/b/e/csm_SGE_30f9ee8f6f.jpg)
For general questions
Manufacturer / Brand
Manufacturer: EATON ELECTRONICS
Tolerance | +/-20% |
---|---|
Inductance | 0,15μH |
Saturation Current | 32,5(ΔL -30%) A |
DC Resistance | 0,0021mΩ |
Series | EXL1V0503 |
Dimension | 6.2x5.9mm |
Pin Type | SMD |
Minimale Category Temperature | -40°C |
Maximum Category Temperature | 125°C |
Height | 3.1mm |
