EVKT-MP5416
€60.00
Availability
Immediately deliverable
More information about samples availability can be found here: Availability
MP5416 Evaluation Kit 2.8-5.5V, Power Management IC with Four Buck Converters and 5 LDOs and I²C Interface
Product Code:
289895
Weight: 485 g
Manufacturer: MPS
Weight: 485 g
Manufacturer: MPS
Detailed information

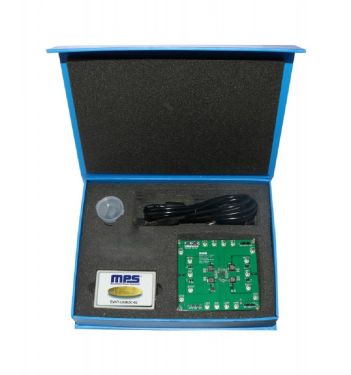

Evaluation Kit for the PMIC IC MPM54304.
The Kit consists of the Evaluation Board EV5416-R-00B together with the PC Interface Kit EVKT-USBI2C-02, including cables, and the programming Software Virtual Bench Pro (Windows 7 or higher).
The module delivers 4 step-down outputs with 4.5A/4A/2.5A/2A and 5 LDOs from an input source between 2.V and 5.5V.
All parameters can be configured via I²C Bus
The Kit consists of the Evaluation Board EV5416-R-00B together with the PC Interface Kit EVKT-USBI2C-02, including cables, and the programming Software Virtual Bench Pro (Windows 7 or higher).
The module delivers 4 step-down outputs with 4.5A/4A/2.5A/2A and 5 LDOs from an input source between 2.V and 5.5V.
All parameters can be configured via I²C Bus
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: MPS
Technical Product Information
| Input Voltage min | 2,5V |
|---|---|
| Input Voltage max | 5,5V |
| Output Current | 4500/4000/2500/2000mA |
