EVCS1806-S-3-30-00A
Free Sample
Availability
Immediately deliverable
More information about samples availability can be found here: Availability

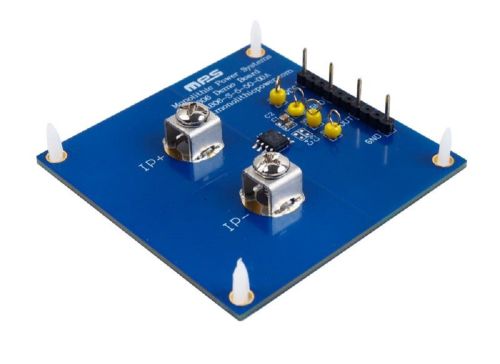

Eval-Board for a Hall-effect based current sensor
+/-30A
+/-30A
Product Code:
316145
Weight: 0 g
Manufacturer: MPS
Weight: 0 g
Manufacturer: MPS
Detailed information
Evaluation-Board
Current Sensor for +/- 30A
3.3V Single Supply
Immune to External Magnetic Fields by Differential Sensing
3kVRMS Minimum Isolation Voltage
500VRMS Maximum Working Voltage
+/- 2,5% Accuracy
Operating Temperature: -40°C to +125°C

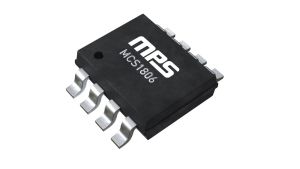

SOIC-8 Package
Current Sensor for +/- 30A
3.3V Single Supply
Immune to External Magnetic Fields by Differential Sensing
3kVRMS Minimum Isolation Voltage
500VRMS Maximum Working Voltage
+/- 2,5% Accuracy
Operating Temperature: -40°C to +125°C
SOIC-8 Package
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: MPS
Technical Product Information
| VCC | 3,3V |
|---|---|
| Internal Conductor Resistance | 0,9mΩ |
| Bandwidth | 100kHz |
| Isolation | 3kV |
| Current Range | ±30A |
| Accuracy | 2,5±% |
