EEHZV1V271P
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
125°C/135°C SMD Hybrid E-Cap ZV-series
Product Code:
322401
Weight: 1.4 g
Manufacturer: PANASONIC
Weight: 1.4 g
Manufacturer: PANASONIC

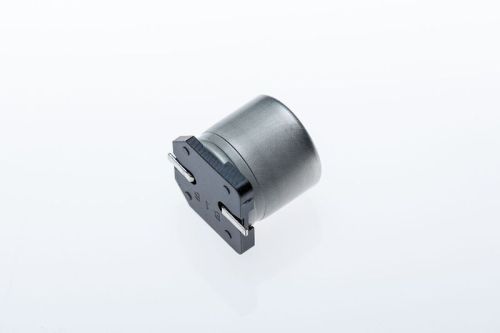

![main product photo](https://www.codico.com/media/catalog/product/cache/c59ee43e27a3fd6035149ee08efef60b/P/a/Panasonic_Hybrid_10x10_2_72.jpg)
Detailed information
125°C/135°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor EEHZV1V271P with 4.000h guaranteed life time, extremely low ESR and extremely high ripple current capability - AEC-Q200 certified.
Rated ripple current at 125°C/100kHz: 4600mA rms
Rated ripple current at 125°C/100kHz: 4600mA rms
Your technical contact person
![](https://content.codico.com/fileadmin/_processed_/b/8/csm_RTR_3e9bde527d.jpg)
For general questions
Manufacturer / Brand
Manufacturer: PANASONIC
Technical Product Information
Capacitance | 270µF |
---|---|
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 3400mA rms |
Impedance/ESR | 0,012Ω |
Maximum Category Temperature | +135°C |
Minimale Category Temperature | -55°C |
Guaranteed Lifetime | 4000h |
Pin Type | SMD |
Diameter | 10mm |
Height | 10,2mm |
Series | ZV |
Voltage Type | DC |
Rated Voltage | 35Vdc |
