EEHZC1J820P
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

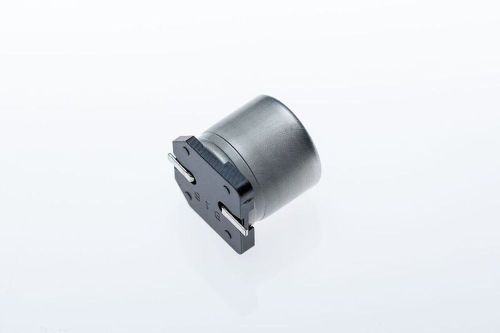

125°C SMD Hybrid E-Cap ZC-series
Product Code:
283644
Weight: 1.36 g
Manufacturer: PANASONIC
Weight: 1.36 g
Manufacturer: PANASONIC
Detailed information
125°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor EEHZC1J820P with 4.000h guaranteed life time, low ESR and high ripple current capability - AEC-Q200 certified
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: PANASONIC
Technical Product Information
| Capacitance | 82µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 1400mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,03Ω |
| Maximum Category Temperature | 125°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | SMD |
| Diameter | 10mm |
| Height | 10,2mm |
| Series | ZC |
| Voltage Type | DC |
| Rated Voltage | 63Vdc |
