DST210A 32,768kHz
Free Sample
Availability
Immediately deliverable
More information about samples availability can be found here: Availability
Tuning Fork 2012size 32,768kHz
Product Code:
237274
Weight: 4.1 g
Manufacturer: KDS Daishinku Corp
Weight: 4.1 g
Manufacturer: KDS Daishinku Corp
Detailed information

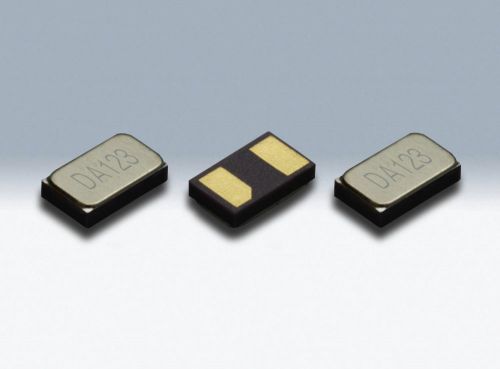

Tuning Fork DST210A 32,768kHz
Frequency Tolerance(@25°C) : 20ppm
Operating Temperature Range : -40/85°C
Temperature Characteristic : -0,04ppm/°C^2
Load Capacitance : 12,5pF
2pads
AEC-Q200 compliant
Frequency Tolerance(@25°C) : 20ppm
Operating Temperature Range : -40/85°C
Temperature Characteristic : -0,04ppm/°C^2
Load Capacitance : 12,5pF
2pads
AEC-Q200 compliant
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: KDS Daishinku Corp
Technical Product Information
| Case Size | 2012 |
|---|---|
| Capacitance_pF | 12,5pF |
| Tolerance | 20ppm |
| Contactform | 2 pads |
| Dimension | 2.0×1.2×0.5mm |
| Packaging | Metal cover |
