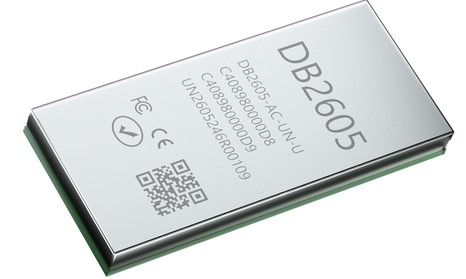

DB2605 AC EVSE Charging Communication Controller SoM
€89.00
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
DB2605 adds the core ISO 15118-2/20 functionalities to AC charging stations to interact with CCS compliant Electrical Vehicles.
Product Code:
323718
Weight: 50 g
Manufacturer: DROPBEATS
Weight: 50 g
Manufacturer: DROPBEATS
Detailed information
DB2605 is equipped with a Qualcomm QCA7005 and a Qualcomm powerful, low-power 32bits MCU running a Real time Operating System with a complete software stack supports ISO 15118-2/20 and IEC 61851.
HomePlug Green PHY: Chipset: HomePlug Green PHY Qualcomm QCA7005-AL33
Powerful MCU: Qualcomm latest low power high performance MCU at 320MHz with 4MB RAM/4MB Flash Memory
Security: Build-in HSM support TLS and firmware security, Common Criteria EAL 4+ certified, IPS 140-2 certified, NIST ECC curves (up to 521 bits key length)
Compatibility: ISO 15118-2 and ISO 15118-20
Applications: ISO 15118-2/20 compliant AC charging stations
Temperature Range: -40 ~ +85C
Interface: UART
Dimension: 20.32mm x 40.64mm
HomePlug Green PHY: Chipset: HomePlug Green PHY Qualcomm QCA7005-AL33
Powerful MCU: Qualcomm latest low power high performance MCU at 320MHz with 4MB RAM/4MB Flash Memory
Security: Build-in HSM support TLS and firmware security, Common Criteria EAL 4+ certified, IPS 140-2 certified, NIST ECC curves (up to 521 bits key length)
Compatibility: ISO 15118-2 and ISO 15118-20
Applications: ISO 15118-2/20 compliant AC charging stations
Temperature Range: -40 ~ +85C
Interface: UART
Dimension: 20.32mm x 40.64mm
