CM2290 Development Kit (CM2290 Standard)
€699.00
Availability
Immediately deliverable
More information about samples availability can be found here: Availability

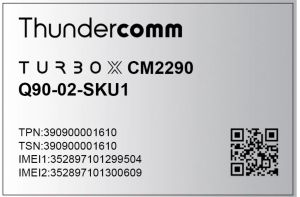

Development kit for the CM2290 / C2290 SOMs focused on connected industrial handhelds, POS, panels and entry level camera systems
Product Code:
307482
Weight: 0 g
Manufacturer: THUNDERCOMM
Weight: 0 g
Manufacturer: THUNDERCOMM
Detailed information
Dual 14-bit ISP,2 x MIPI-CSI 4lane Connectors
1 x OV13B10 Camera
1 x IMX577
1 x 5.0 TFT-LCD with 4L-MIPI DSI D-PHY
1 x HDMI Out
1 x 3.5mm headset
4 x Digital Mics
1 x USB 3.0 Type C
1 x Micro USB(For UART Debug)
2 x SIM Card 1 x PWM 1 x SD card
1 x RTC 1 x Battery Connector
1 x NFC 1 x CAN 1 x UART (for RS232/RS485)
1 x ALS/PROXIMITY SENSOR 1 x ACCEL+GYRO Sensor
1 x Magnetic Sensor 1 x Pressure Sensor
2 x LTE Antennas 1 x Wifi/Bt Antenna 1 x GNSS Antenna
Android 11, Linux
185 x 150 mm
1 x OV13B10 Camera
1 x IMX577
1 x 5.0 TFT-LCD with 4L-MIPI DSI D-PHY
1 x HDMI Out
1 x 3.5mm headset
4 x Digital Mics
1 x USB 3.0 Type C
1 x Micro USB(For UART Debug)
2 x SIM Card 1 x PWM 1 x SD card
1 x RTC 1 x Battery Connector
1 x NFC 1 x CAN 1 x UART (for RS232/RS485)
1 x ALS/PROXIMITY SENSOR 1 x ACCEL+GYRO Sensor
1 x Magnetic Sensor 1 x Pressure Sensor
2 x LTE Antennas 1 x Wifi/Bt Antenna 1 x GNSS Antenna
Android 11, Linux
185 x 150 mm
