AH (3215size) 32.768kHz 12.5pF for Automotive
Free Sample
Availability
Immediately deliverable
More information about samples availability can be found here: Availability

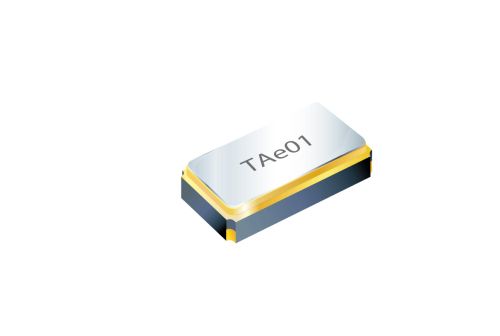

Tuning Fork 3215size 32,768kHz 12.5pF for Automotive
Product Code:
308447
Weight: 0 g
Manufacturer: TXC
Weight: 0 g
Manufacturer: TXC
Detailed information
Tuning Fork AH 32,768kHz
Frequency Tolerance(@25°C) : 20ppm
Operating Temperature Range : -40/125°C
Temperature Characteristic : -0,04ppm/°C^2
Load Capacitance : 6pF
ESR: 70kO max
2pads
AEC-Q200 compliant
Frequency Tolerance(@25°C) : 20ppm
Operating Temperature Range : -40/125°C
Temperature Characteristic : -0,04ppm/°C^2
Load Capacitance : 6pF
ESR: 70kO max
2pads
AEC-Q200 compliant
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: TXC
Technical Product Information
| Case Size | 3215 |
|---|---|
| Capacitance_pF | 12.5pF |
| Tolerance | 20ppm |
| Operating Temperature | -40~+125°C |
| Contactform | 2 pads |
| Packaging | Metal cover |
