9HT10/3215TF 32.768kHz, -4085degC, 20ppm, 12.5pF
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

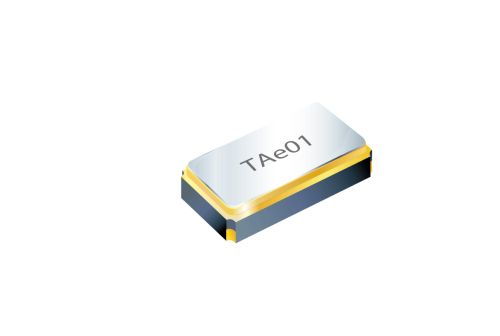

Tuning Fork 3215size 32.768KHz 12.5pF
Product Code:
284785
Weight: 2.5 g
Manufacturer: TXC
Weight: 2.5 g
Manufacturer: TXC
Detailed information
Tuning Fork 9HT10 32,768kHz
Frequency Tolerance(@25°C) : 20ppm
Operating Temperature Range : -40/85°C
Temperature Characteristic : -0,04ppm/°C^2
Load Capacitance : 12,5pF
ESR: 65kO max
2pads
AEC-Q200 compliant
Frequency Tolerance(@25°C) : 20ppm
Operating Temperature Range : -40/85°C
Temperature Characteristic : -0,04ppm/°C^2
Load Capacitance : 12,5pF
ESR: 65kO max
2pads
AEC-Q200 compliant
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: TXC
Technical Product Information
| Case Size | 3215 |
|---|---|
| Capacitance_pF | 12,5pF |
| Tolerance | 20ppm |
| Operating Temperature | -40~+85°C |
| Contactform | 2 pads |
| Dimension | 3.2×1.5×0.75mm |
| Packaging | Metal cover |
