63ZLH2200MEFC18x40
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Miniaturized 105°C THT Low-ESR Long-Life E-Cap ZLH-series
Product Code:
206817
Weight: 16 g
Manufacturer: RUBYCON
Weight: 16 g
Manufacturer: RUBYCON
Detailed information

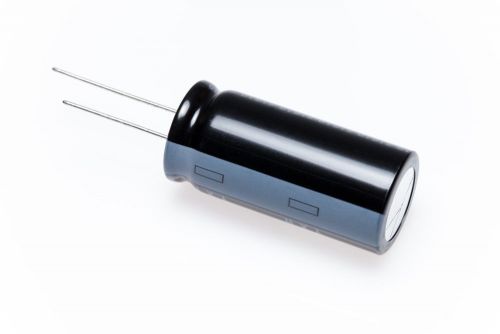

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 63ZLH2200MEFC18x40 with low ESR, high ripple current capability and long life time
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 63V |
|---|---|
| Capacitance | 2200µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 3670mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,018Ω |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 10000h |
| Pin Type | THT |
| Pitch | 7,5mm |
| Diameter | 18mm |
| Height | 40mm |
| Series | ZLH |
| Voltage Type | DC |
| Rated Voltage | 63Vdc |
