6.3ZLJ1000M8x16
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Miniaturized 105°C THT Low-ESR Long-Life E-Cap ZLJ-series for high ripple currents
Product Code:
247510
Weight: 1.4 g
Manufacturer: RUBYCON
Weight: 1.4 g
Manufacturer: RUBYCON
Detailed information

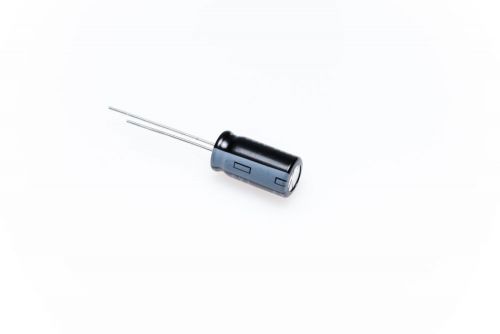

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 6.3ZLJ1000M8x16 with extra high ripple current capability, low ESR and long life time
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 6,3V |
|---|---|
| Capacitance | 1000µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 1250mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,059Ω |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 9000h |
| Pin Type | THT |
| Pitch | 3,5mm |
| Diameter | 8mm |
| Height | 16mm |
| Series | ZLJ |
| Voltage Type | DC |
| Rated Voltage | 6,3Vdc |
