6.3YXJ2200M10x16
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Miniaturized 105°C THT Long-Life Low-ESR E-Cap YXJ-series
Product Code:
235060
Weight: 2.1 g
Manufacturer: RUBYCON
Weight: 2.1 g
Manufacturer: RUBYCON
Detailed information

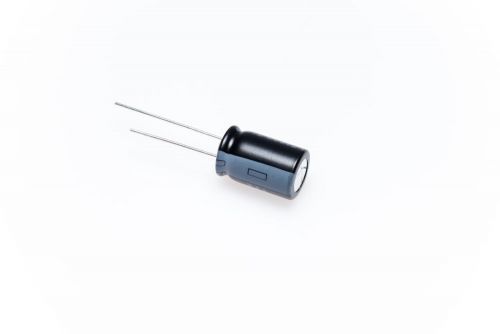

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 6.3YXJ2200M10x16 with extra low ESR and long life time
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 6,3V |
|---|---|
| Capacitance | 2200µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 1300mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,062Ω |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 8000h |
| Pin Type | THT |
| Pitch | 5mm |
| Diameter | 10mm |
| Height | 16mm |
| Series | YXJ |
| Voltage Type | DC |
| Rated Voltage | 6,3Vdc |
