450HXG68MEFCSN22x25
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C Snap-in E-Cap HXG-series for high ripple currents
Product Code:
231454
Weight: 14 g
Manufacturer: RUBYCON
Weight: 14 g
Manufacturer: RUBYCON
![main product photo](https://www.codico.com/media/catalog/product/cache/c59ee43e27a3fd6035149ee08efef60b/r/u/rubycon_20x25_143_50.jpg)
Detailed information

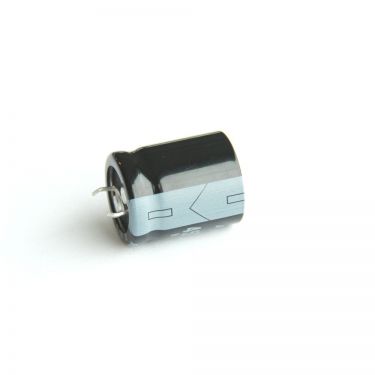

105°C Snap-in Aluminum Electrolytic Capacitor 450HXG68MEFCSN22x25 with 3.000h guaranteed life time and high ripple current capability
Your technical contact person
![Yasunobu Ikuno Yasunobu Ikuno is application engineer and product manager](https://content.codico.com/fileadmin/_processed_/5/7/csm_YIK_Yasunobu_Ikuno__c91c36ba9d.png)
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 450V |
---|---|
Capacitance | 68µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 0mA rms |
Rated Ripple Current @120Hz | 970mA rms |
Maximum Category Temperature | 105°C |
Minimale Category Temperature | -25°C |
Guaranteed Lifetime | 3000h |
Pin Type | SNAP-IN |
Pitch | 10mm |
Diameter | 22mm |
Height | 25mm |
Series | HXG |
Voltage Type | DC |
Rated Voltage | 450Vdc |
