450BXC4R7MEFC10x16
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT Long-Life E-Cap BXC-series for high ripple currents
Product Code:
219481
Weight: 2.1 g
Manufacturer: RUBYCON
Weight: 2.1 g
Manufacturer: RUBYCON

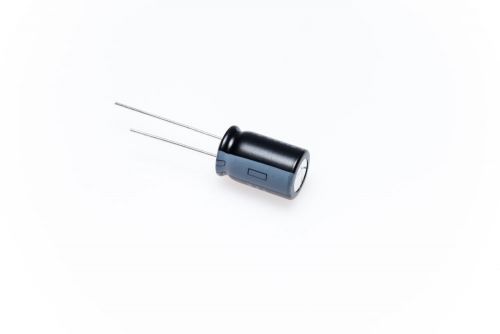

![main product photo](https://www.codico.com/media/catalog/product/cache/c59ee43e27a3fd6035149ee08efef60b/r/u/rubycon_10x16_160_40.jpg)
Detailed information
105°C THT DC-Link Aluminum Electrolytic Capacitor 450BXC4R7MEFC10x16 with long life time and high ripple current capability
Your technical contact person
![Yasunobu Ikuno Yasunobu Ikuno is application engineer and product manager](https://content.codico.com/fileadmin/_processed_/5/7/csm_YIK_Yasunobu_Ikuno__c91c36ba9d.png)
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 450V |
---|---|
Capacitance | 4,7µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 180mA rms |
Rated Ripple Current @120Hz | 0mA rms |
Maximum Category Temperature | 105°C |
Minimale Category Temperature | -25°C |
Guaranteed Lifetime | 10000h |
Pin Type | THT |
Pitch | 5mm |
Diameter | 10mm |
Height | 16mm |
Series | BXC |
Voltage Type | DC |
Rated Voltage | 450Vdc |
