420MXH680MEFCSN35x45
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Miniaturized 105°C Snap-in E-Cap MXH-series
Product Code:
204952
Weight: 66 g
Manufacturer: RUBYCON
Weight: 66 g
Manufacturer: RUBYCON
Detailed information

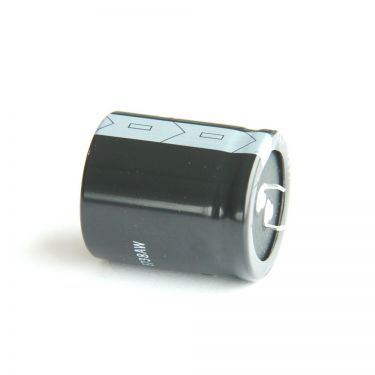

Miniaturized 105°C Snap-in Aluminum Electrolytic Capacitor 420MXH680MEFCSN35x45 with 2.000h guaranteed life time
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 420V |
|---|---|
| Capacitance | 680µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 0mA rms |
| Rated Ripple Current @120Hz | 2290mA rms |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -25°C |
| Guaranteed Lifetime | 2000h |
| Pin Type | SNAP-IN |
| Pitch | 10mm |
| Diameter | 35mm |
| Height | 45mm |
| Series | MXH |
| Voltage Type | DC |
| Rated Voltage | 420Vdc |
