420BXW150MEFR18x40
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT Long-Life E-Cap BXW-series for high ripple currents
Product Code:
245210
Weight: 16 g
Manufacturer: RUBYCON
Weight: 16 g
Manufacturer: RUBYCON

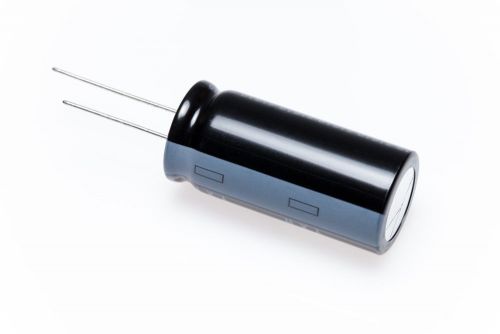

![main product photo](https://www.codico.com/media/catalog/product/cache/c59ee43e27a3fd6035149ee08efef60b/r/u/rubycon_18x40_15_8.jpg)
Detailed information
Miniaturized 105°C THT DC-Link Aluminum Electrolytic Capacitor 420BXW150MEFR18x40 with long life time and high ripple current capability
Your technical contact person
![Yasunobu Ikuno Yasunobu Ikuno is application engineer and product manager](https://content.codico.com/fileadmin/_processed_/5/7/csm_YIK_Yasunobu_Ikuno__c91c36ba9d.png)
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 420V |
---|---|
Capacitance | 150µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 2250mA rms |
Rated Ripple Current @120Hz | 1000mA rms |
Maximum Category Temperature | 105°C |
Minimale Category Temperature | -40°C |
Guaranteed Lifetime | 12000h |
Pin Type | THT |
Pitch | 7,5mm |
Diameter | 18mm |
Height | 40mm |
Series | BXW |
Voltage Type | DC |
Rated Voltage | 420Vdc |
