400RX305R6M10x16
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
130°C THT E-Cap RX30-series
Product Code:
212389
Weight: 2.1 g
Manufacturer: RUBYCON
Weight: 2.1 g
Manufacturer: RUBYCON
![main product photo](https://www.codico.com/media/catalog/product/cache/c59ee43e27a3fd6035149ee08efef60b/r/u/rubycon_rx30_10x16_31_9.jpg)
Detailed information

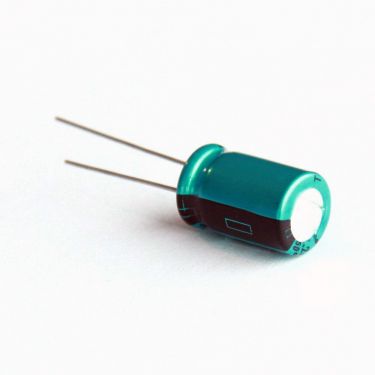

130°C THT Aluminum Electrolytic Capacitor 400RX305R6M10x16
Your technical contact person
![Yasunobu Ikuno Yasunobu Ikuno is application engineer and product manager](https://content.codico.com/fileadmin/_processed_/5/7/csm_YIK_Yasunobu_Ikuno__c91c36ba9d.png)
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 400V |
---|---|
Capacitance | 5,6µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 130mA rms |
Rated Ripple Current @120Hz | 0mA rms |
Maximum Category Temperature | 130°C |
Minimale Category Temperature | -25°C |
Guaranteed Lifetime | 2000h |
Pin Type | THT |
Pitch | 5mm |
Diameter | 10mm |
Height | 16mm |
Series | RX30 |
Voltage Type | DC |
Rated Voltage | 400Vdc |
