400MXH270MEFCSN25x35

Name: 400MXH270MEFCSN25x35
SKU: 191194
Price: 2.40 EUR
Availability: InStock

Free Sample

Add to Compare

Availability

Deliverable in short time

More information about samples availability can be found here: Availability

Miniaturized 105°C Snap-in E-Cap MXH-series

Product Code: 191194
Weight: 27 g
Manufacturer: RUBYCON

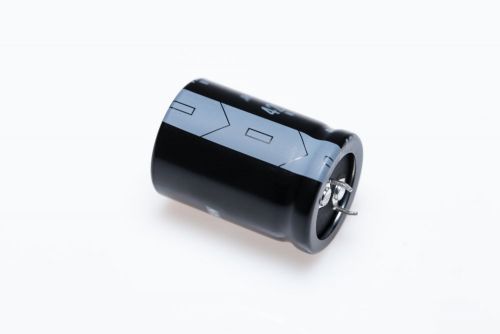

Miniaturized 105°C Snap-in Aluminum Electrolytic Capacitor 400MXH270MEFCSN25x35 with 2.000h guaranteed life time

Yasunobu Ikuno +43 186 305-276 E-MAIL

CODICO GmbH +43 1 86305-0 E-Mail

Manufacturer: RUBYCON

Rated Voltage	400V
Capacitance	270µF
Capacitance Tolerance	+/-20 %
Rated Ripple Current @100kHz	0mA rms
Rated Ripple Current @120Hz	1490mA rms
Maximum Category Temperature	105°C
Minimale Category Temperature	-25°C
Guaranteed Lifetime	2000h
Pin Type	SNAP-IN
Pitch	10mm
Diameter	25mm
Height	35mm
Series	MXH
Voltage Type	DC
Rated Voltage	400Vdc
