400AX15MEFC10x16
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT E-Cap AX-series for high ripple currents
Product Code:
243933
Weight: 2.1 g
Manufacturer: RUBYCON
Weight: 2.1 g
Manufacturer: RUBYCON
![main product photo](https://www.codico.com/media/catalog/product/cache/c59ee43e27a3fd6035149ee08efef60b/r/u/rubycon_10x16_163_9.jpg)
Detailed information

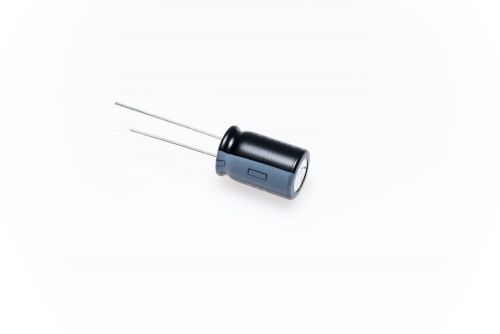

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 400AX15MEFC10x16 with high ripple current capability in small dimensions
Your technical contact person
![Yasunobu Ikuno Yasunobu Ikuno is application engineer and product manager](https://content.codico.com/fileadmin/_processed_/5/7/csm_YIK_Yasunobu_Ikuno__c91c36ba9d.png)
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 400V |
---|---|
Capacitance | 15µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 0mA rms |
Rated Ripple Current @120Hz | 150mA rms |
Maximum Category Temperature | 105°C |
Minimale Category Temperature | -40°C |
Guaranteed Lifetime | 2000h |
Pin Type | THT |
Pitch | 5mm |
Diameter | 10mm |
Height | 16mm |
Series | AX |
Voltage Type | DC |
Rated Voltage | 400Vdc |
