35HVPC390M+P
Free Sample
Availability
Immediately deliverable
More information about samples availability can be found here: Availability
Miniaturized 125°C SMD Hybrid E-Cap HVPC-series
Product Code:
280458
Weight: 1.9 g
Manufacturer: SUNCON
Weight: 1.9 g
Manufacturer: SUNCON
Detailed information

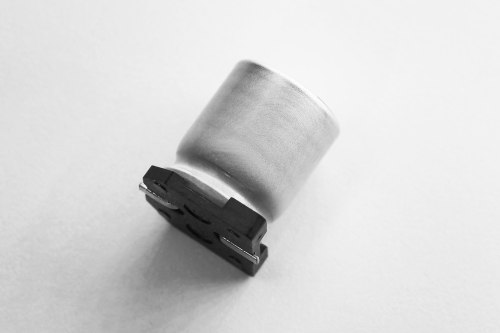

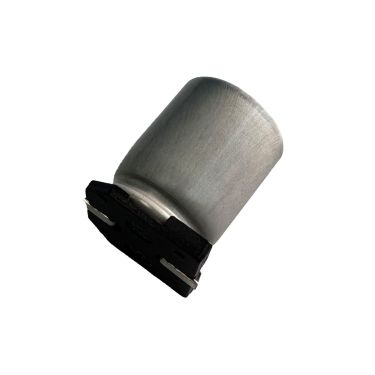

Miniaturized 125°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor 35HVPC390M+P with 4.000h guaranteed life time, low ESR and high ripple current capability
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: SUNCON
Technical Product Information
| Capacitance | 390µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 3000mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,02Ω |
| Maximum Category Temperature | 125°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | SMD |
| Diameter | 10mm |
| Height | 12,5mm |
| Series | HVPC |
| Voltage Type | DC |
| Rated Voltage | 35Vdc |
