250VXH680MEFCSN30x30
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Miniaturized 105°C Snap-in E-Cap VXH-series with 5.000h
Product Code:
196645
Weight: 32 g
Manufacturer: RUBYCON
Weight: 32 g
Manufacturer: RUBYCON
Detailed information

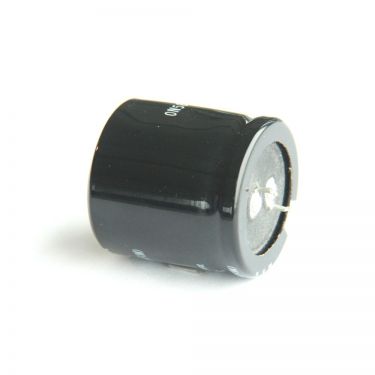

Miniaturized 105°C Snap-in Aluminum Electrolytic Capacitor 250VXH680MEFCSN30x30 with 5.000h guaranteed life time
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 250V |
|---|---|
| Capacitance | 680µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 0mA rms |
| Rated Ripple Current @120Hz | 1920mA rms |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -25°C |
| Guaranteed Lifetime | 5000h |
| Pin Type | SNAP-IN |
| Pitch | 10mm |
| Diameter | 30mm |
| Height | 30mm |
| Series | VXH |
| Voltage Type | DC |
| Rated Voltage | 250Vdc |
