220MXG680MEFCSN22x45
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C Snap-in E-Cap MXG-series
Product Code:
176720
Weight: 27 g
Manufacturer: RUBYCON
Weight: 27 g
Manufacturer: RUBYCON

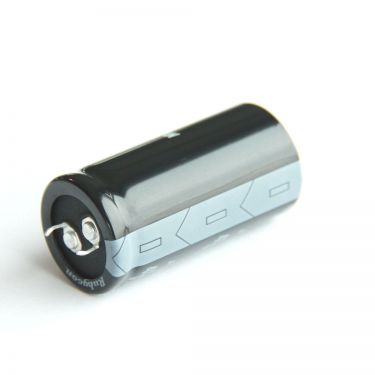

![main product photo](https://www.codico.com/media/catalog/product/cache/c59ee43e27a3fd6035149ee08efef60b/r/u/rubycon_25x50_177_38.jpg)
Detailed information
105°C Snap-in Aluminum Electrolytic Capacitor 220MXG680MEFCSN22x45 with 3.000h guaranteed life time
Your technical contact person
![Yasunobu Ikuno Yasunobu Ikuno is application engineer and product manager](https://content.codico.com/fileadmin/_processed_/5/7/csm_YIK_Yasunobu_Ikuno__c91c36ba9d.png)
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 220V |
---|---|
Capacitance | 680µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 0mA rms |
Rated Ripple Current @120Hz | 2290mA rms |
Maximum Category Temperature | 105°C |
Minimale Category Temperature | -40°C |
Guaranteed Lifetime | 3000h |
Pin Type | SNAP-IN |
Pitch | 10mm |
Diameter | 22mm |
Height | 45mm |
Series | MXG |
Voltage Type | DC |
Rated Voltage | 220Vdc |
