200MXG680MEFCSN25x30

Name: 200MXG680MEFCSN25x30
SKU: 201471
Price: 2.10 EUR
Availability: InStock

Free Sample

Add to Compare

Availability

Deliverable in short time

More information about samples availability can be found here: Availability

105°C Snap-in E-Cap MXG-series

Product Code: 201471
Weight: 23 g
Manufacturer: RUBYCON

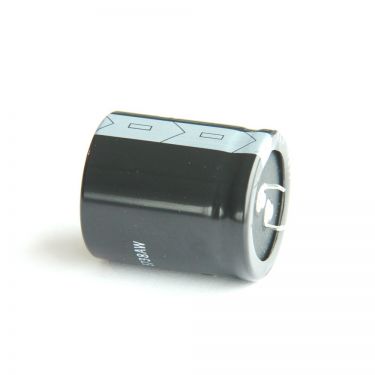

105°C Snap-in Aluminum Electrolytic Capacitor 200MXG680MEFCSN25x30 with 3.000h guaranteed life time

Yasunobu Ikuno +43 186 305-276 E-MAIL

CODICO GmbH +43 1 86305-0 E-Mail

Manufacturer: RUBYCON

Rated Voltage	200V
Capacitance	680µF
Capacitance Tolerance	+/-20 %
Rated Ripple Current @100kHz	0mA rms
Rated Ripple Current @120Hz	1850mA rms
Maximum Category Temperature	105°C
Minimale Category Temperature	-40°C
Guaranteed Lifetime	3000h
Pin Type	SNAP-IN
Pitch	10mm
Diameter	25mm
Height	30mm
Series	MXG
Voltage Type	DC
Rated Voltage	200Vdc
