200BXW470MEFR16x50
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT Long-Life E-Cap BXW-series for high ripple currents
Product Code:
258855
Weight: 15 g
Manufacturer: RUBYCON
Weight: 15 g
Manufacturer: RUBYCON
Detailed information

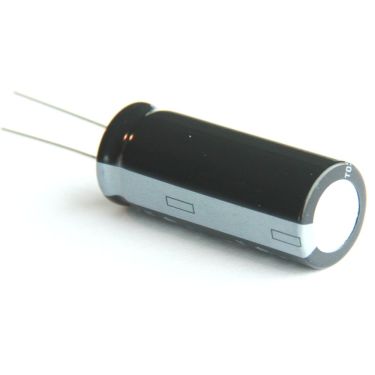

Miniaturized 105°C THT DC-Link Aluminum Electrolytic Capacitor 200BXW470MEFR16x50 with long life time and high ripple current capability
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 200V |
|---|---|
| Capacitance | 470µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 3360mA rms |
| Rated Ripple Current @120Hz | 1680mA rms |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 12000h |
| Pin Type | THT |
| Pitch | 7,5mm |
| Diameter | 16mm |
| Height | 50mm |
| Series | BXW |
| Voltage Type | DC |
| Rated Voltage | 200Vdc |
