160KXF390MEFCSN25x20
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C Snap-in E-Cap KXF-series with low profile case size
Product Code:
228393
Weight: 14 g
Manufacturer: RUBYCON
Weight: 14 g
Manufacturer: RUBYCON
Detailed information

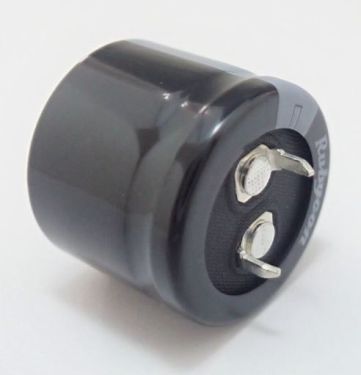

105°C Snap-in Aluminum Electrolytic Capacitor 160KXF390MEFCSN25x20 with 3.000h guaranteed life time and 20mm height
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 160V |
|---|---|
| Capacitance | 390µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 0mA rms |
| Rated Ripple Current @120Hz | 1250mA rms |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -25°C |
| Guaranteed Lifetime | 3000h |
| Pin Type | SNAP-IN |
| Pitch | 10mm |
| Diameter | 25mm |
| Height | 20mm |
| Series | KXF |
| Voltage Type | DC |
| Rated Voltage | 160Vdc |
