10TZV1000M10x10.5
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C SMD Low-ESR E-Cap TZV-series
Product Code:
167550
Weight: 1.3 g
Manufacturer: RUBYCON
Weight: 1.3 g
Manufacturer: RUBYCON
Detailed information

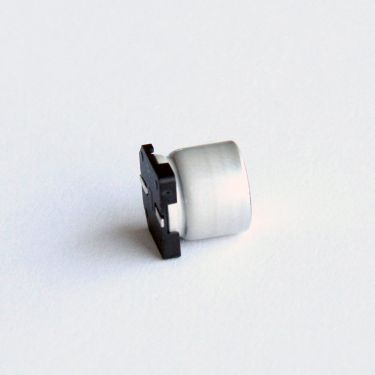

105°C SMD Aluminum Electrolytic Capacitor 10TZV1000M10x10.5 with low ESR
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 10V |
|---|---|
| Capacitance | 1000µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 850mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,08Ω |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 2000h |
| Pin Type | SMD |
| Diameter | 10mm |
| Height | 10,5mm |
| Series | TZV |
| Voltage Type | DC |
| Rated Voltage | 10Vdc |
