10FVC1800M+P

Name: 10FVC1800M+P
SKU: 323623
Price: 2.70 EUR
Availability: InStock

Free Sample

Add to Compare

Availability

Deliverable in short time

More information about samples availability can be found here: Availability

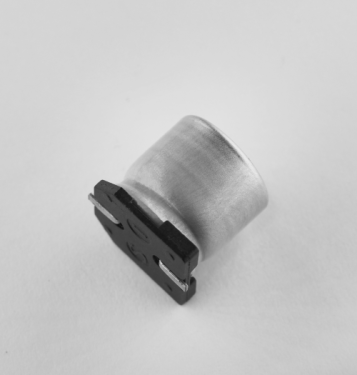

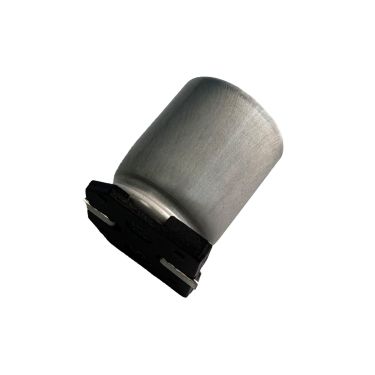

Ultra miniaturized 135°C SMD Hybrid E-Cap FVC-series

Product Code: 323623
Weight: 1.9 g
Manufacturer: SUNCON

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Description

Detailed information

Ultra miniaturized 135°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor 10FVC1800M+P with 4.000h guaranteed life time, low ESR and high ripple current capability.
Rated ripple current at 125°C: 4,400mA rms
Rated ripple current at 105°C: 7,000mA rms

Your technical contact person

Roland Trimmel +43 186 305-144 E-MAIL

For general questions

CODICO GmbH +43 1 86305-0 E-Mail

Manufacturer / Brand

Manufacturer: SUNCON

Technical Product Information

Datasheet_Sun_FVC (pdf , 107.4 KB )

Features

More Information
Capacitance	1800µF
Capacitance Tolerance	+/-20 %
Rated Ripple Current @100kHz	2100mA rms
Impedance/ESR	0,014Ω
Maximum Category Temperature	135°C
Minimale Category Temperature	-55°C
Guaranteed Lifetime	4000h
Pin Type	SMD
Diameter	10mm
Height	12,5mm
Series	FVC
Voltage Type	DC
Rated Voltage	10Vdc
