100TXW120MEFC8x40
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
"105° THT Long-Life E-Cap TXW-series for high ripple currents ""Pencil Type"""
Product Code:
257066
Weight: 3.7 g
Manufacturer: RUBYCON
Weight: 3.7 g
Manufacturer: RUBYCON

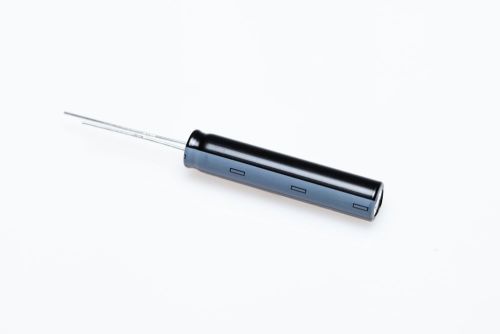

![main product photo](https://www.codico.com/media/catalog/product/cache/c59ee43e27a3fd6035149ee08efef60b/r/u/rubycon_8x40_14_9.jpg)
Detailed information
"105°C THT Aluminum Electrolytic Capacitor 100TXW120MEFC8x40 with high ripple current capability and long life time ""Pencil Type"""
Your technical contact person
![Yasunobu Ikuno Yasunobu Ikuno is application engineer and product manager](https://content.codico.com/fileadmin/_processed_/5/7/csm_YIK_Yasunobu_Ikuno__c91c36ba9d.png)
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 100V |
---|---|
Capacitance | 120µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 2020mA rms |
Rated Ripple Current @120Hz | 1010mA rms |
Maximum Category Temperature | 105°C |
Minimale Category Temperature | -40°C |
Guaranteed Lifetime | 10000h |
Pin Type | THT |
Pitch | 3,5mm |
Diameter | 8mm |
Height | 40mm |
Series | TXW |
Voltage Type | DC |
Rated Voltage | 100Vdc |
